WPS JDBC

The WPS JDBC extension is a WPS status storage for asynchronous requests. Main advantages are:

  • Asynchronous request status sharing among multiple GeoServer nodes

  • Ability to retain the status of completed requests even after the GeoServer(s) have been restarted.

Installing the WPS JDBC extension

  1. From the website download page, locate your release, and download: http://sourceforge.net/projects/geoserver/files/GeoServer/2.20.4/extensions/geoserver-2.20.4-wps-jdbc-plugin.zip

    Verify that the version number in the filename corresponds to the version of GeoServer you are running (for example 2.20.4 above).

  2. Extract the contents of the archive into the WEB-INF/lib directory in GeoServer. Make sure you do not create any sub-directories during the extraction process.

  3. Restart GeoServer.

Configuring the WPS JDBC properties

  1. Create a file named jdbcstatusstore.props into the GEOSERVER_DATA_DIR root

  2. Update the sample content below accordingly to your connection parameters

    user=postgres
port=5432
password=******
passwd=******
host=localhost
database=gsstore
driver=org.postgresql.Driver
dbtype=postgis

  3. Restart GeoServer

Share the WPS Execution Directory among the cluster nodes

Typically the WPS JDBC plugin is useful when setting up a GeoServer cluster.

The plugin allows sharing of the execution status among the nodes of the cluster.

Nevertheless, this won’t be sufficient. You will need to share the Execution folder too, in order to allow the different instances to correctly retrieve the executions results.

  1. Create a shared folder that all the nodes can reach somehow, e.g. by using nfs

  2. From the GeoServer Admin dashboard, go to the WPS menu and edit the Resource Storage Directory accordingly

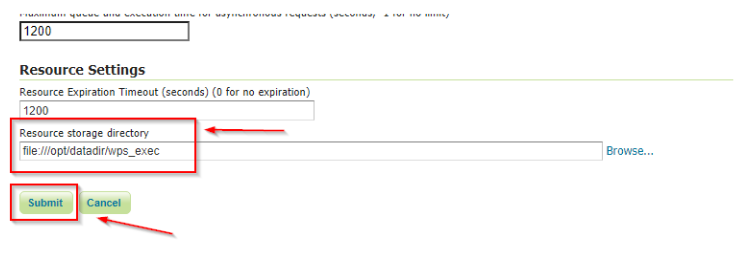

../../_images/wps-resource-storage-directory.png

WPS JDBC shared Resource Storage Directory
