Installation on Linux

To install GeoServer Enterprise in Linux, follow these steps.

Java

GeoServer Enterprise requires a Java 8 environment.

OpenJDK is now the lead project for the Java ecosystem. As an open-source company GeoCat is pleased to see OpenJDK supported by a number of different distributions.

  1. We recommend using OpenJDK 8 provided by your operating system:

    • Ubuntu

      sudo apt-get install openjdk-8-jdk

    • RedHat:

      sudo yum install java-1.8.0-openjdk-devel

    • To manually install Java, see Manual Linux Java Install

  2. Verify that java is available:

    java -version

    openjdk version "1.8.0_262"
OpenJDK Runtime Environment (build 1.8.0_262-b10)
OpenJDK 64-Bit Server VM (build 25.262-b10, mixed mode)

Apache Tomcat

Apache Tomcat is the leading open source application server.

GeoServer Enterprise supports Apache Tomcat 8.5.x or 9.0.x.

  1. Installation options:

  2. Verify that tomcat is available as a service:

    • Ubuntu

      sudo service tomcat9 status

    • CentOS

      systemctl status tomcat

  1. The application server is available on port 8080:

Data Directory

GeoServer places all its required configuration files in a GEOSERVER_DATA_DIR folder.

This location my be explicitly provided, to do so, follow these steps:

  1. Create a folder to hold your GeoServer Enterprise configuration:

    sudo mkdir /var/opt/geoserver/

  2. We have three options for creating an initial GeoServer data directory:

    • Alternative 1 - Use the default data directory with recommended service configuration settings.

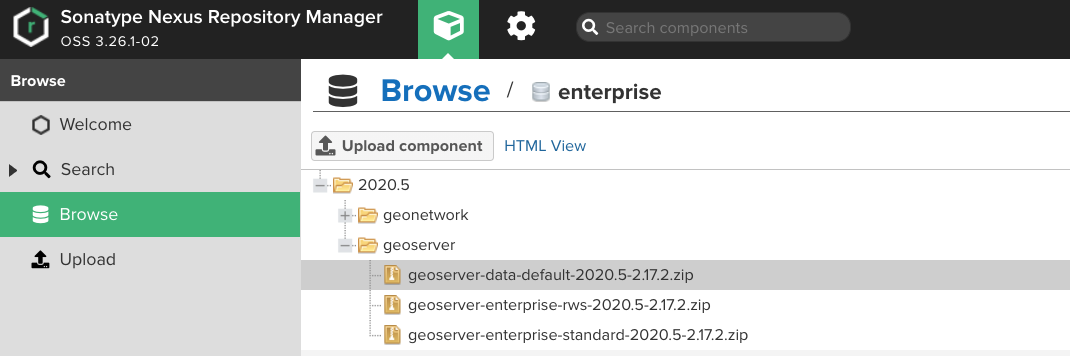

      Login to nexus.geocat.net and browse to the enterprise folder:

      Navigate to the latest geoserver release and select the geoserver-data-default zip archive.

      ../../_images/data_directory_default_download.png

      Locate latest geoserver-data-default zip archive

      Copy the download URL from the asset summary Path link.

      ../../_images/data_directory_default_path.png

      Latest geoserver-data-default zip URL

      Use wget to download the URL:

      mkdir /tmp/geoserver-enterprise
cd /tmp/geoserver-enterprise
wget --http-user='USERNAME' --http-password='PASSWORD' https://nexus.geocat.net/repository/enterprise/2020.5/geoserver/geoserver-data-default-2020.5-2.17.2.zip

      geoserver-data-default-2020.5-2.17. 100%[================================================================>]  10.41K  --.-KB/s    in 0.002s

2020-09-11 09:11:00 (5.03 MB/s) - ‘geoserver-data-default-2020.5-2.17.2.zip.1’ saved [10663/10663]

      Unzip this archive:

      cd /tmp/geoserver-enterprise
unzip geoserver-data-default*.zip

      extracting: data.zip
 inflating: windows/geoserver.xml
 inflating: linux/geoserver.xml
 inflating: README.txt

      Unzip the data.zip:

      unzip data.zip -d /var/opt/geoserver/data

      Note

      If wget or unzip are not installed, you can install the packages;

      # Ubuntu
sudo apt-get install wget
sudo apt-get install unzip

# CentOS
sudo yum install wget
sudo yum install unzip

    • Alternative 2 - Use the standard data directory with recommended service configuration settings, and a selection of example layers:

      unzip geoserver-enterprise-data.zip

      extracting: data.zip
 inflating: windows/geoserver.xml
 inflating: linux/geoserver.xml
 inflating: README.txt

      Unzip the data.zip:

      unzip data.zip -d /var/opt/geoserver/data

    • Alternative 3 - Use an empty folder, GeoServer will generate configuration files to this folder the first time it runs:

      cd /var/opt/geoserver/
mkdir data

      This approach is often used in automated workflow where GeoServer is configured via REST API scripts.

      Note

      You must also remove this line from your Geoserver Tomcat context file;

      <Parameter name="GEOSERVER_REQUIRE_FILE"
   value="/var/opt/geoserver/data/global.xml" override="false"/>

  3. Create an empty tilecache folder:

    sudo mkdir /var/opt/geoserver/tilecache

    The GeoWebCache tile server will use this empty folder to manage generated tiles.

  4. Ensure the tomcat user has permission to access the above directories:

    sudo chown -R tomcat:tomcat /var/opt/geoserver
sudo chmod +r+w -R /var/opt/geoserver

  5. Update the Tomcat configuration with this data directory location:

    • Open the Tomcat folder (/var/lib/tomcat9/, /opt/tomcat/latest or /etc/tomcat9) and navigate to the conf/Catalina/localhost subfolder.

    • In the localhost folder, create a geoserver.xml file, with the following content:

      <Context>
  <Parameter name="GEOSERVER_DATA_DIR"
             value="/var/opt/geoserver/data" override="false"/>
  <Parameter name="GEOSERVER_REQUIRE_FILE"
             value="/var/opt/geoserver/data/global.xml" override="false"/>
  <Parameter name="GEOWEBCACHE_CACHE_DIR"
             value="/var/opt/geoserver/tilecache" override="false"/>
</Context>

    Note the conf/Catalina/localhost/ folder is created when you first run Tomcat.

  6. The default on recent Ubuntu is to provide and operating system systemd sandbox for services.

    Provide tomcat9 service read/write permissions to the GeoServer Data Directory and the GeoWebCache tile cache directory:

    1. Edit the Tomcat systemd configuration. This is likely in /etc/systemd/system/multi-user.target.wants/tomcat9.service

    2. In the [Service] section, add these lines:

      ReadWritePaths=/var/opt/geoserver/data
ReadWritePaths=/var/opt/geoserver/tilecache

    3. If you will be writing anywhere else on the file system, also add those directories here.

    4. Ask systemd to read these changes, and restart Tomcat

      sudo systemctl daemon-reload
sudo service tomcat9 restart

GeoServer Enterprise

To install GeoServer on your existing Tomcat instance, follow these steps:

  1. Login to nexus.geocat.net and browse to the enterprise folder:

    Navigate to the latest geoserver release and select the geoserver-standard zip archive.

    ../../_images/nexus-download.png

  2. Unzip this file containing:

    • windows - sample configuration files

    • geoserver.war - geoserver enterprise web application

    • GPL and LICENSE.txt open source license information

  3. Copy the geoserver.war web archive to the to [Tomcat_folder]/webapps folder.

    The [Tomcat_folder] will be either /var/lib/tomcat9/ or /opt/tomcat/latest.

    Tomcat will deploy geoserver.war web application, creating the folder webapps/geoserver when you first run Tomcat.

  4. In your web browser, navigate to localhost:8080/geoserver to verify that GeoServer Enterprise is correctly working.

    ../../_images/gserunning.png
