Configure the Google authentication provider

The first thing to do is to configure the OAuth2 Provider and obtain Client ID and Client Secret keys.

  1. Obtain OAuth 2.0 credentials from the Google API Console.

    Visit the Google API Console to obtain OAuth 2.0 credentials such as a client ID and client secret that are known to both Google and your application. The set of values varies based on what type of application you are building. For example, a JavaScript application does not require a secret, but a web server application does.

    • Login with a valid Google Account

      ../../_images/google_api_console001.png

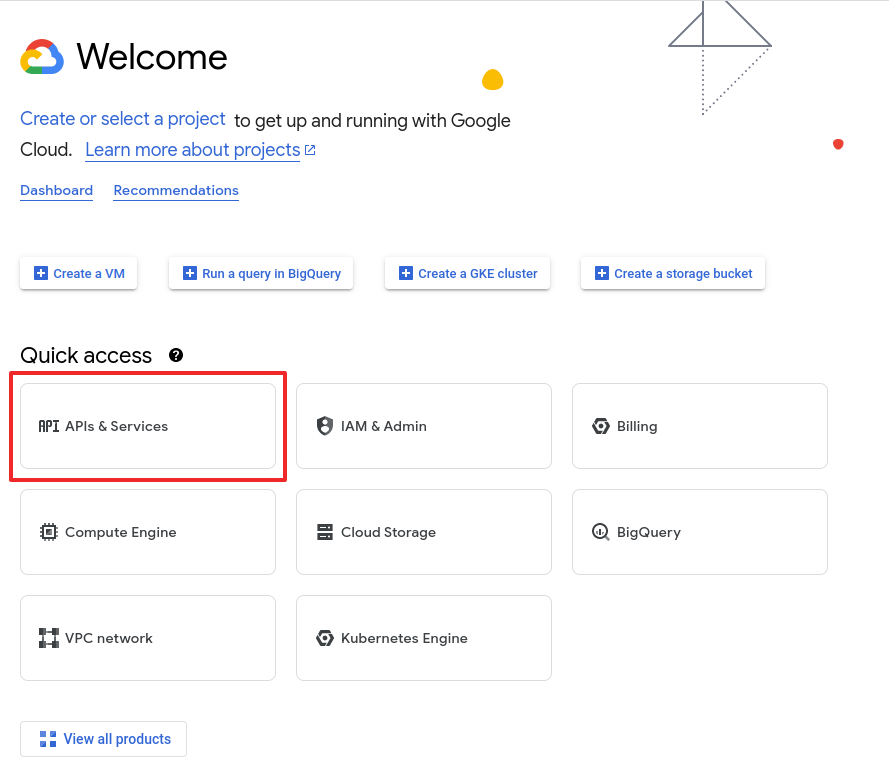

    • Click on APIs & Services

      ../../_images/google_api_console002.png

    • Click on Credentials

      ../../_images/google_api_console003.png

      Note

      The first time you land here, Google will ask to create at least one project

      ../../_images/google_api_console004.png

      For the purpose of this tutorial we will create a sample project. You are free to create other projects or update existing ones through the Google API Console later.

      ../../_images/google_api_console005.png

      If no Credentials are present, you will be asked to create new one.

      ../../_images/google_api_console006.png

  2. Select an existing (or create a new one) OAuth Client ID

    ../../_images/google_api_console007.png

  3. Configure a new Web application

    • If it is the first time you create an OAuth Client ID, you will be asked to create a new consent screen

      ../../_images/google_api_console008.png

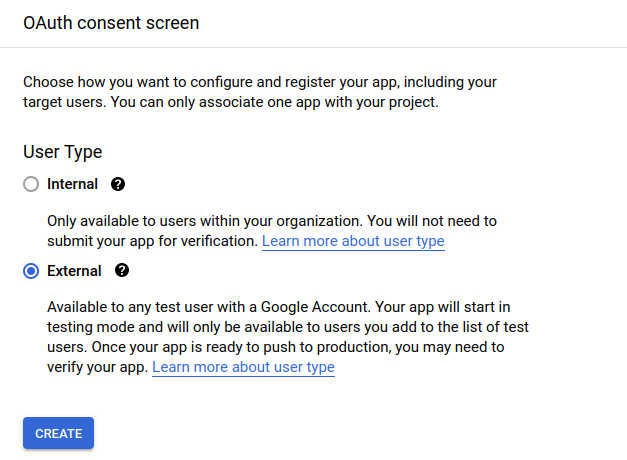

    • Customize the consent screen

      Warning

      This step is mandatory only if it’s the first time you are defining a Web application on a new project. If you don’t have an organization, you can only choose type External from the screen below.

      ../../_images/google_api_console009.png

    • Fill the form below and click on save and continue untill all tabs are filled.

      ../../_images/google_api_console010.png

      Note

      It can be edited and updated also later (see last point of this section below)

    • From the credentials page, click on CREATE CREDENTIALS> OAuth Client ID and select Application type -> Web application

      Warning

      This step is mandatory only if it’s the first time you are defining a Web application on a new project.

      ../../_images/google_api_console010a.png

    • Add a Name and the Authorized redirect URIs like shown here below.

      Note

      This sample creates a client working on the default local URL https://instance.geocat.live/geoserver. Of course this will work only on a local instance and can’t be used for a production system.

      However it is possible to add as many Authorized redirect URIs you need to a new Web application.

      It is also possible to create many Client credentials with customised consent screen and Web application, depending on your specific needs. Every public GeoServer instance (or cluster of GeoServer belonging to a specific project) should have its own specific Client credentials.

      ../../_images/google_api_console011.png

      Note

      Always add two entries for each URI. One without the ending / and another one with it.

      ../../_images/google_api_console012.png

  4. Click on Create and take note of the Client ID and the Client Secret.

    At the end of the procedure Google will show-up a small dialog box with the Client ID and the Client Secret. That info can be always accessed and updated from the Google API Console

    ../../_images/google_api_console013.png

  5. Optionally customize the OAuth consent screen.

    At any time it is possible to update and customize the OAuth consent screen. You can put here your logo, app name, ToS and so on.

    ../../_images/google_api_console014.png
